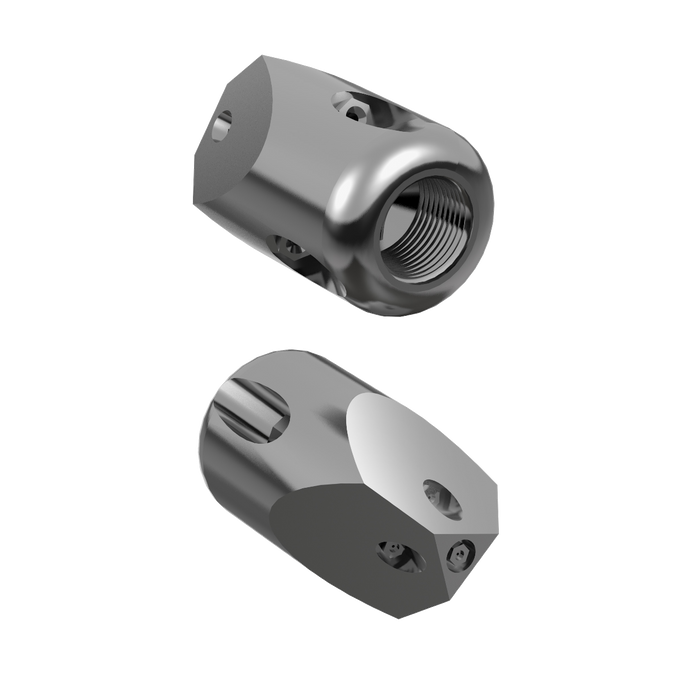

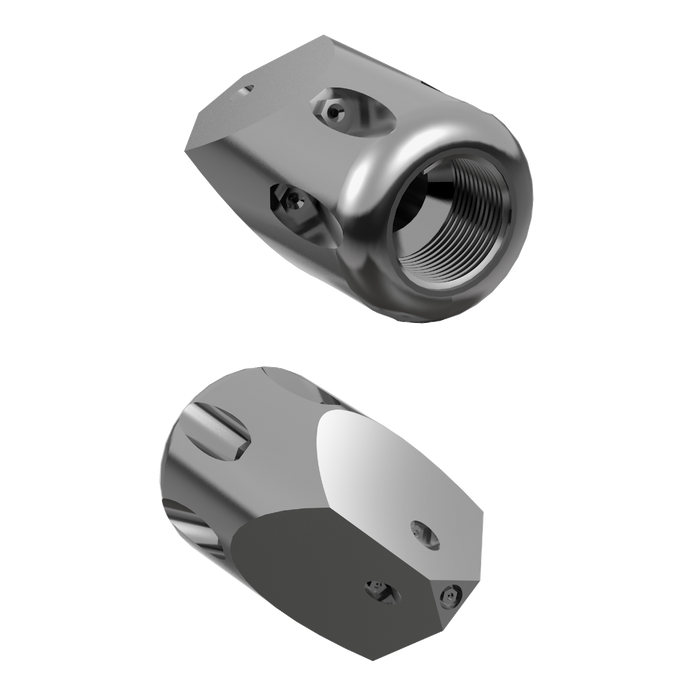

Chisel Nozzle (Jets)

$0.00
Article number 2-11342-JS

Description

NozzTeq® Chisel Nozzles is a Tier 2 nozzle per NASSCO Standards supplied with exchangeable jet inserts both for front and rear jets. The exchangeable jets allow a perfect match to your jetting unit and matching the units pump capacity. The nozzles can be supplied with jets inserts in harden stainless steel or ceramic jets. If you are using recycling water, we highly recommend the ceramic jets for longer service lifetime.

NozzTeq® Chisel Nozzles is the perfect all-purpose nozzle to break open clogs and remove general debris including grease and light roots. The front of the nozzle is supplied with sharpened edges that will, together with the four front jets, help cut through grease, ice and roots and handle blockages of many types. The multiple front jets penetrate the blockage while the rear jets provide thrust to push nozzle up the pipe.

NozzTeq® Chisel Nozzle is a problem-solving nozzle good to keep in any jetting toolbox. It is designed to break opens clogged pipes and penetrate obstacles. Various sizes are available to work in pipe sizes from 2 inch up to 20 inch.

The Tier 2 Chisel nozzles with exchangeable jets are available for 1/2” up to 1-1/4” hoses.

The Chisel nozzles Tier2 can handle pump pressures up to 3500 PSI.

Technical data

Connection 1/2″
For recyclers No
Front jets 3 x m4 (15°) + 1 x m4 (0°)
Length x diameter 2 x 1.2 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 8 us gpm
Pipe dimension 2″ – 10″
Rear jets 3 x m6 (25°)
Weight 0.5 lbs.
Connection 1/2″
For recyclers Yes
Front jets 3 x m4 (15°) + 1 x m4 (0°)
Length x diameter 2 x 1.2 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 8 us gpm
Pipe dimension 2″ – 10″
Rear jets 3 x m6 (25°)
Weight 0.5 lbs.
Connection 1″
For recyclers No
Front jets 3 x m6 (15°) + 1 x m6 (0°)
Length x diameter 3.75 x 2 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 25 us gpm
Pipe dimension 4″ – 12″
Rear jets 6 x m6 (20°)
Weight 0,75 kg
Connection 1″
For recyclers Yes
Front jets 3 x m6 (15°) + 1 x m6 (0°)
Length x diameter 3.75 x 2 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 25 us gpm
Pipe dimension 4″ – 12″
Rear jets 6 x m6 (20°)
Weight 1.6 lbs.
Connection 1-1/4″
For recyclers No
Front jets 3 x m6 (15°) + 1 x m6 (0°)
Length x diameter 5.3 x 2.75 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 37 us gpm
Pipe dimension 6″ – 20″
Rear jets 6 x 1/8″ (20°)
Weight 4.8 lbs.
Connection 1-1/4″
For recyclers Yes
Front jets 3 x m6 (15°) + 1 x m6 (0°)
Length x diameter 5.3 x 2.75 inches
Max working pressure 3500 psi
Min water flow at 1450 psi 37 us gpm
Pipe dimension 6″ – 20″
Rear jets 6 x 1/8″ - (20°)
Weight 4.8 lbs.
