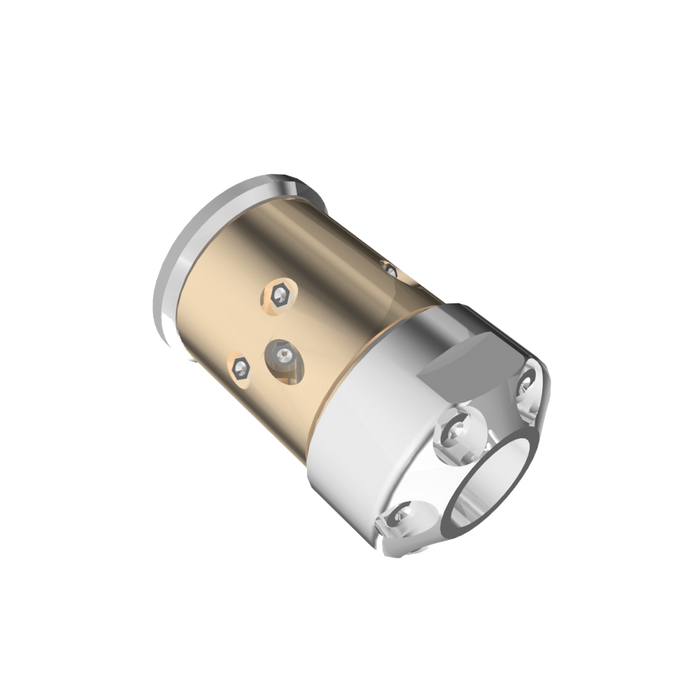

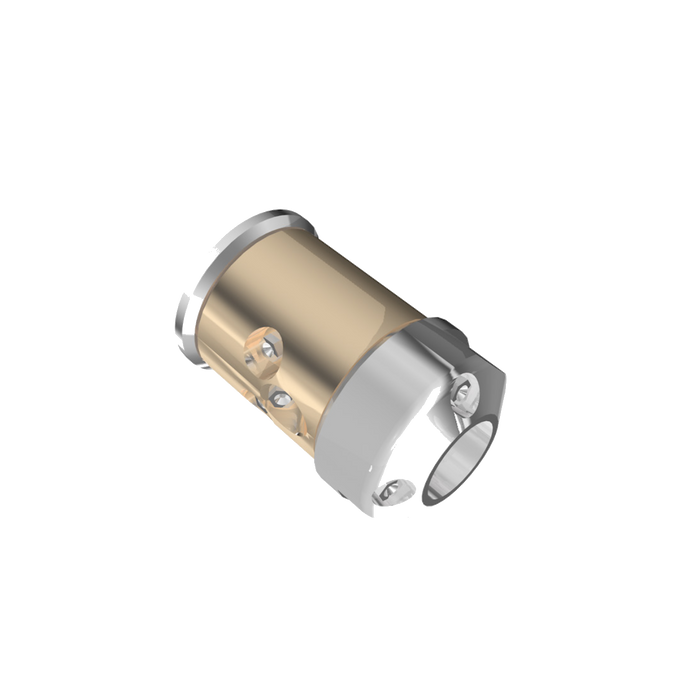

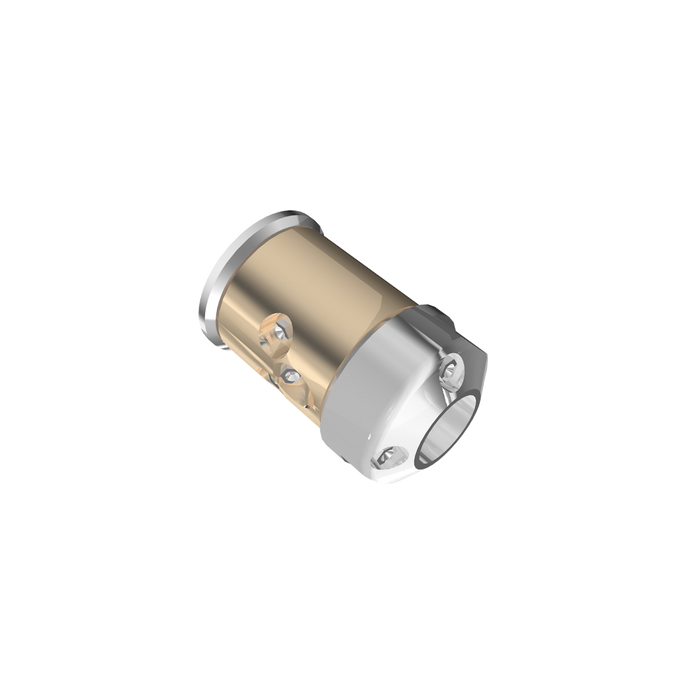

BL SPINNER™

BL SPINNER™

$0.00
Article number 2-11480-C04-JS

Description

The BL SPINNER™ series are developed for a flexible and effective removal of grease, smoother deposits, smaller roots etc. They come in two versions depending on size. One version had 4 at 45° jets on the rotating body. The other version only has 2 jets on the rotating body at 45°.       The 1-1/4” BL SPINNER™ have four changeable 45° jets on the rotating body. The 1/2″ and up have thrusting jets that are changeable together with rotating adaptable propulsion 90° and 45° jets.

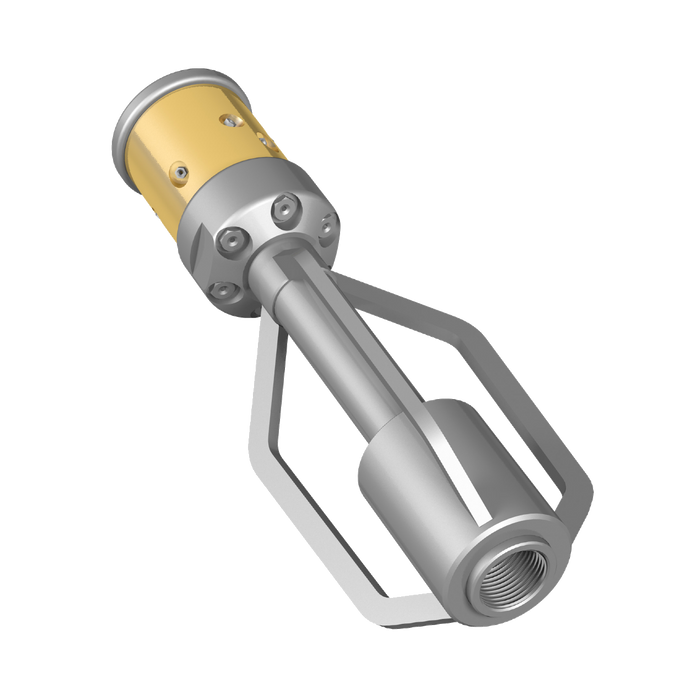

BL SPINNER™ gives a water pattern for effective removal of debris. The closer the jet is towards the debris the more effective it becomes. This is the most important rule when using a spinning (rotating) nozzle and we have therefore designed special sleds for all our BL SPINNER™.

Characteristics BL SPINNER™:
• Quality stainless steel and brass construction
• Variable jet sizes to accommodate flows
• Low thrusting jet angle for maximum thrusting power
• The rotating body is reversible allowing 45° to shoot back or forward.

Technical data

Article Number
2-11480-C04-JS 1/2″ 4″ – 12″ 16 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 4 x 2 inches 2.75 lbs No 3500 PSI
2-11380-C04 1/2″ 3″ – 10″ 16 US GPM 4 x M6 (10°) 4 x M4 (90°) + 2 x M4 (45°) Backward 4 x 2 inches 2.75 lbs No
2-11480-C04-JC 1/2″ 3″ – 10″ 16 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 4 x 2 inches 2.75 lbs. No 3500 PSI
2-11380-C04-JC 1/2″ 3″ – 10″ 10 US GPM 4 x M6 (10°) 4 x M4 (90°) + 2 x M4 (45°) Backward 3.5 x 1.75 inches 2.5 ounces No 3500 PSI
2-11381-C04 1/2″ 3″ – 10″ 10 US GPM 4 x M6 (10°) 4 x M4 (90°) + 2 x M4 (45°) Forward 3.5 x 1.75 inches 2.5 ounces No 3500 PSI
2-11480-C05-JS 3/4″ 4″ – 12″ 16 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 4 x 2 inches 2.75 lbs. No 3500 PSI
2-11580-C05-JS 3/4″ 4″ – 16″ 24 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 5 x 2.5 inches 5 lbs. No 3500 PSI
2-11680-C05-JS 3/4″ 6″ – 20″ 40 US GPM 6 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 6.7 x 3.5 inches 11.6 lbs. No 3500 PSI
2-11480-C05-JC 3/4″ 4″ – 12″ 16 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 4 x 2 inches 2.5 lbs. No 3500 PSI
2-11580-C05-JC 3/4″ 4″ – 16″ 24 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 5 x 2.5 inches 5 lbs. No 3500 PSI
2-11680-C05-JC 3/4″ 6″ – 24″ 40 US GPM 6 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 6.7 x 3.5 inches 11.5 lbs. No 3500 PSI
2-11580-C06-JS 1″ 4″ – 16″ 24 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 4.5 x 2.5 inches 5 lbs. No 3500 PSI
2-11680-C06-JS 1″ 6″-24″ 40 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 6.5 x 3.5 inches 11 lbs. No 3500 PSI
2-11680-C06-JS-01 1″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 18 x 6.25 inches 21 lbs. No 3500 PSI
2-11680-C06-JS-02 1″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 20.5 x 6.25 inches 23 lbs. No 3500 PSI
2-11580-C06-JC 3/4″ 4″ – 16″ 24 US GPM 4 x M6 (10°) Backward 4 x M6 (90°) + 2 x M6 (45°) Backward 4.5x 2.5 inches 5.5 lbs. No 3500 PSI
2-11680-C06-JC 1″ 6″-24″ 40 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 6.7 x 3.5 inches 11.5 lbs. No 3500 PSI
2-11680-C06-JC-01 1″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 18 x 6.25 inches 21 lbs. No 3500 PSI
2-11680-C06-JC-02 1″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 20 x 6.25 inches 23 lbs. No 3500 PSI
2-11680-C07-JS 1-1/4″ 6″-24″ 40 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 6 x 3.5 inches 12 lbs. No 3500 PSI
2-11680-C07-JS-01 1-1/4″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 17 x 6.25 inches No 3500 PSI
2-11680-C07-JS-02 1-1/4″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 17 x 6.25 inches 11 lbs. No 3500 PSI
2-11680-C07-JC 1-1/4″ 6″-24″ 40 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 6 x 3.5 inches 12 lbs No 3500 PSI
2-11680-C07-JC-01 1-1/4″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 17.5 x 6.25 inches 21 lbs. No 3500 PSI
2-11680-C07-JC-02 1-1/4″ 8″-24″ 55 US GPM 4 x 1/8″ (10°) 4 x M6 (90°) + 2 x M6 (45°) Backward 18 x 6.25 inches 21 lbs. No 3500 PSI
